24' x 36' Montsweag House

This home was designed as a primary residence for a young growing family. The timber frame is a high-posted cape with ridge pole, fashioned from native Hemlock timbers, sanded and oiled. The unique slip-joint cross-ties provide the option for a ceiling on the second floor and create an attic storage loft above (or even the possiblity of a play space for children). This floorplan includes two bedrooms and full bath on the second floor as well as an open cathedral space over the livingroom.

We hope you enjoy the photos as much as we enjoyed creating this very special BungalowInABox.

Floor Plan and Elevations: Click a thumbnail to start this slideshow.

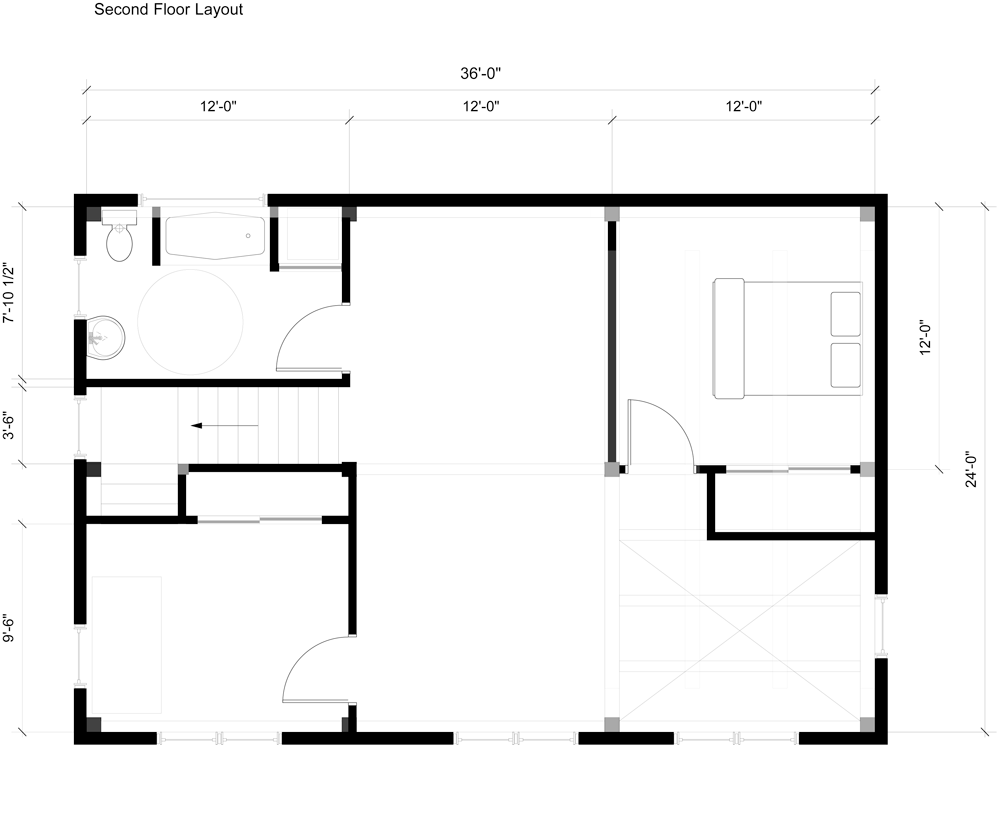

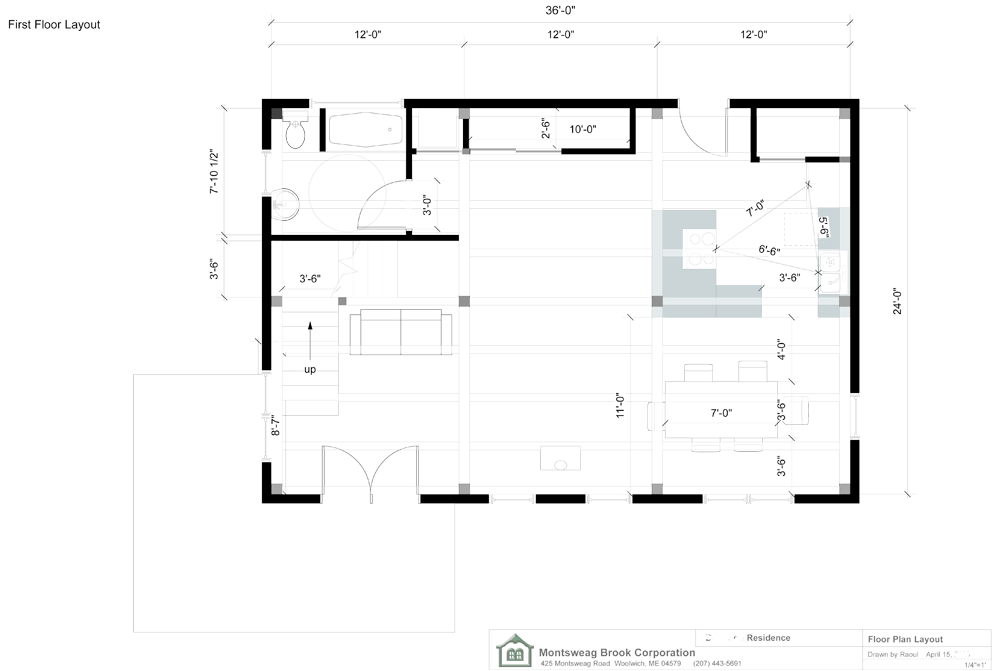

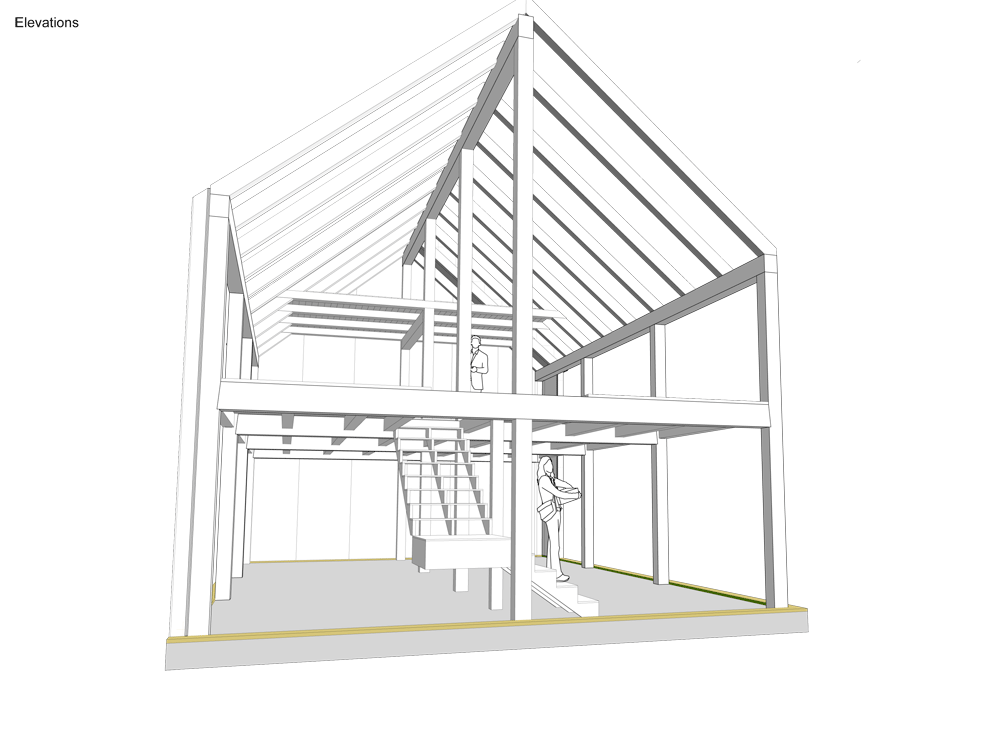

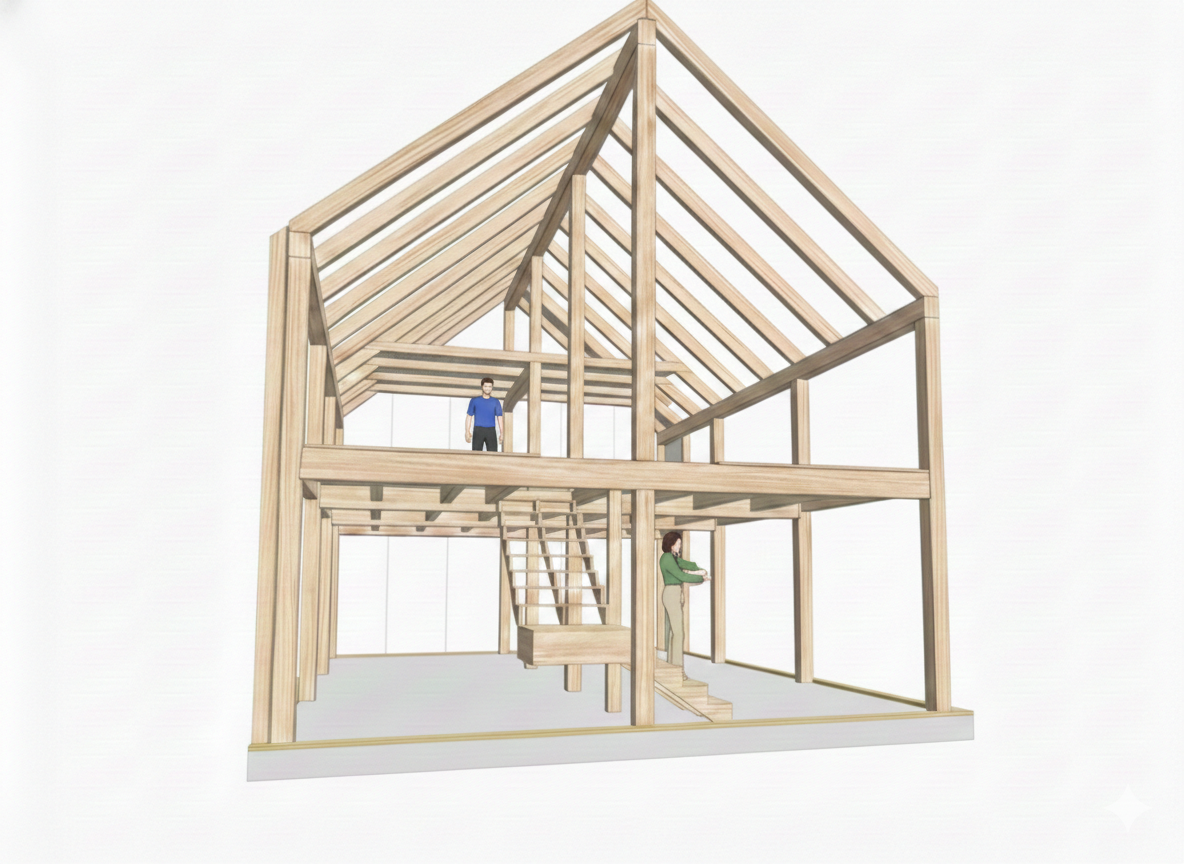

3D Elevation 1st Floor Plan 2nd Floor Plan
Construction Photos: Click a thumbnail to start this slideshow.

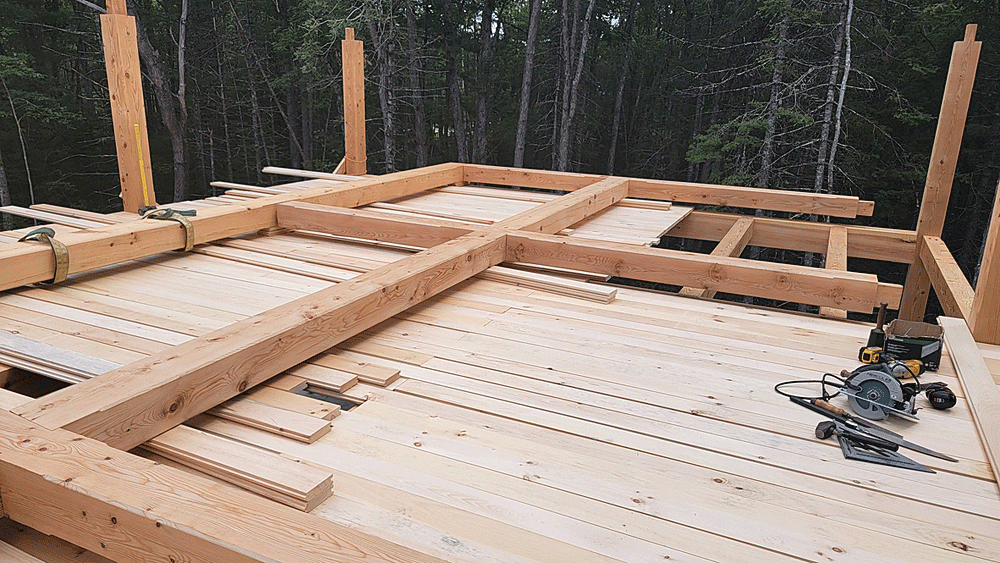

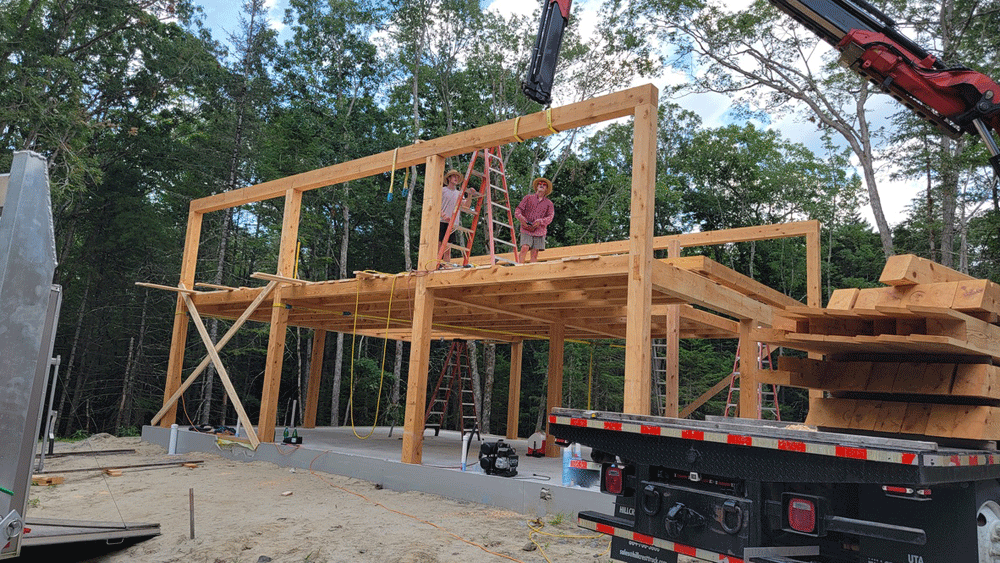

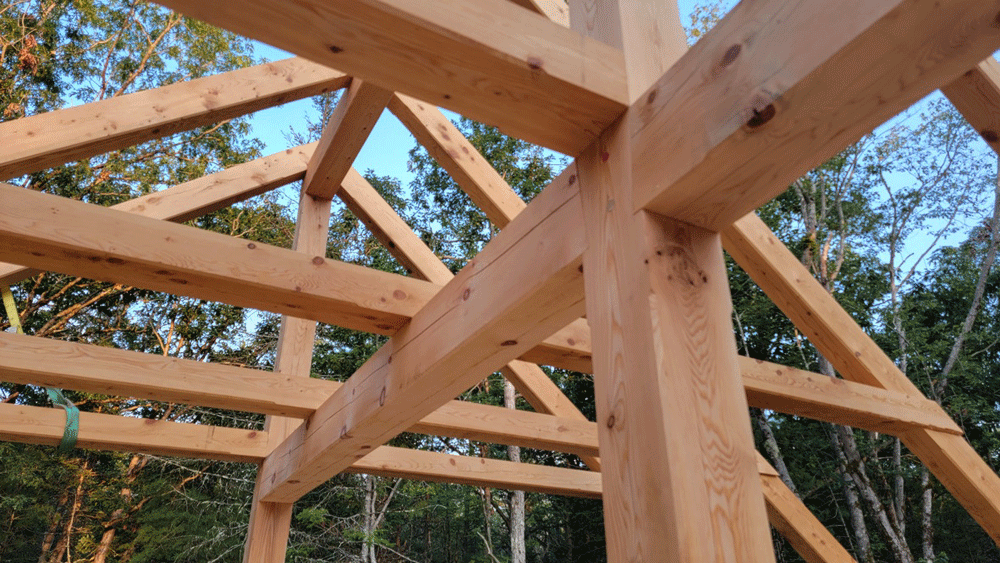

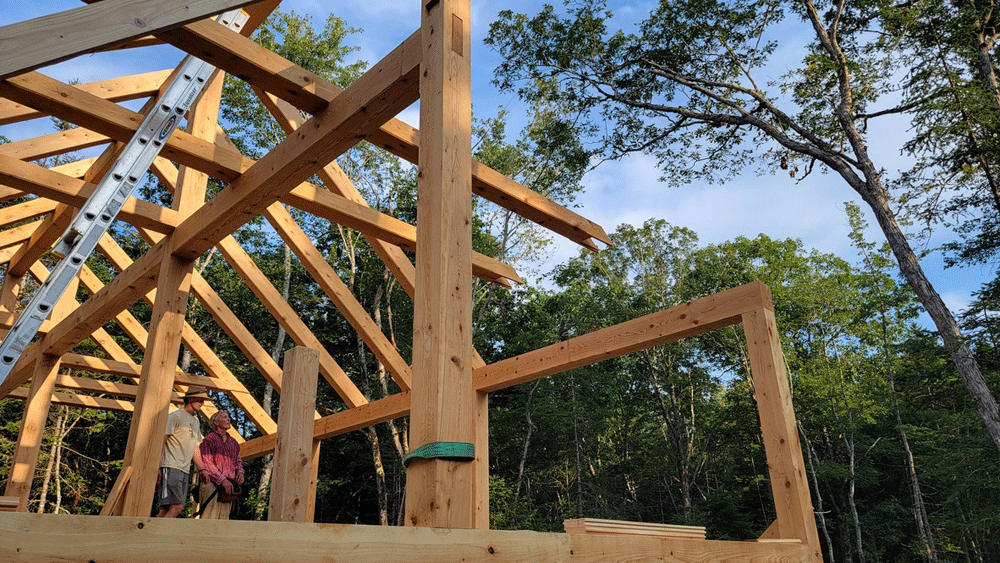

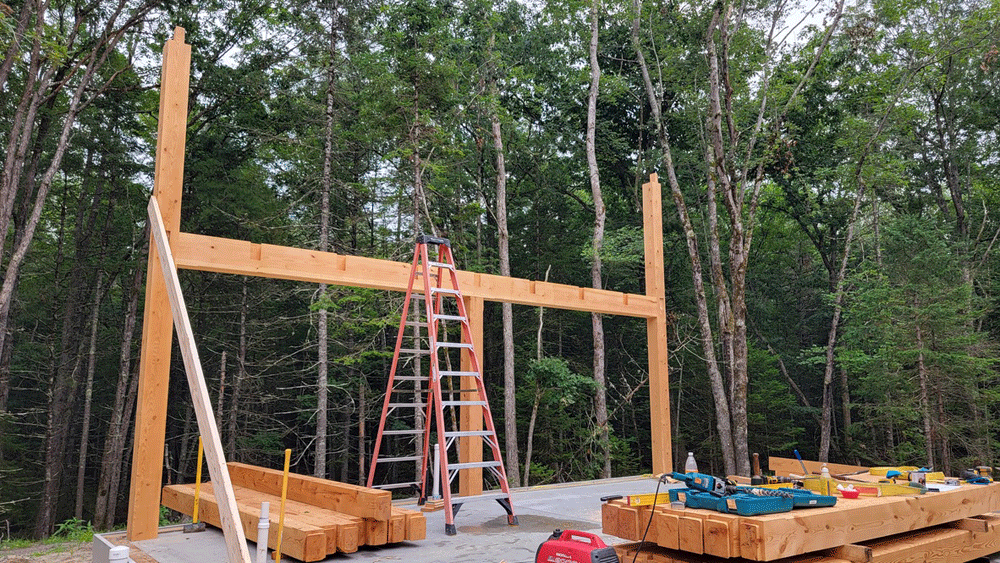

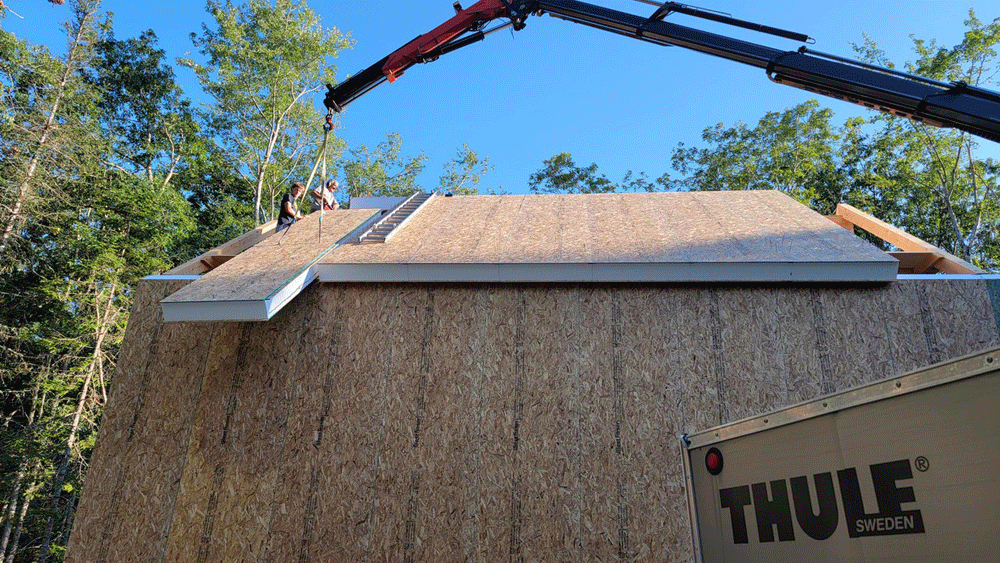

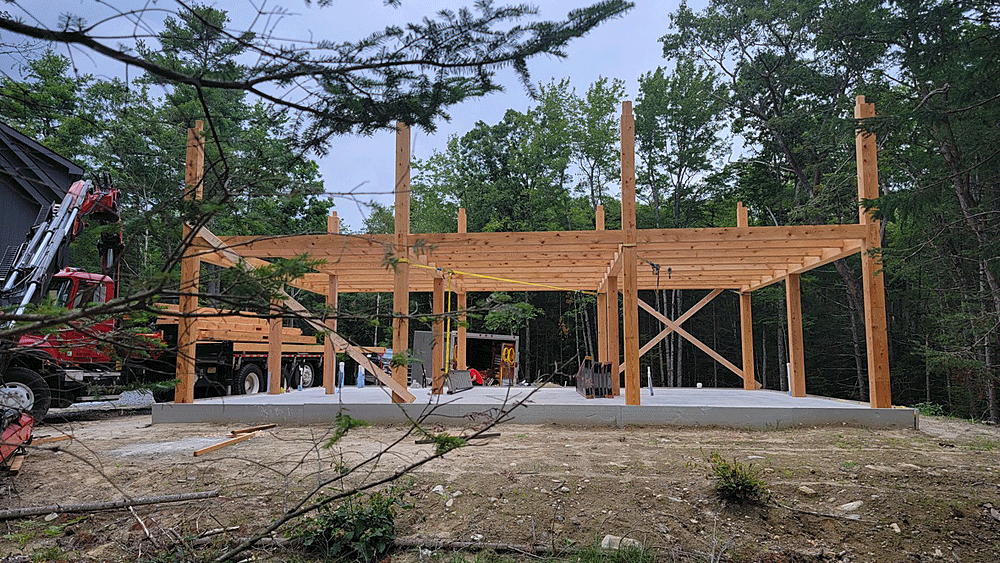

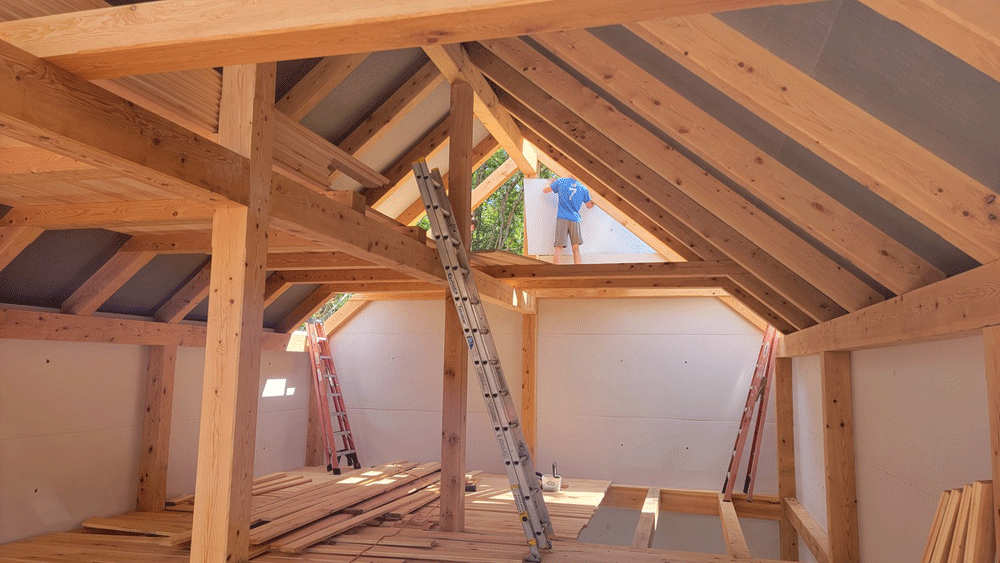

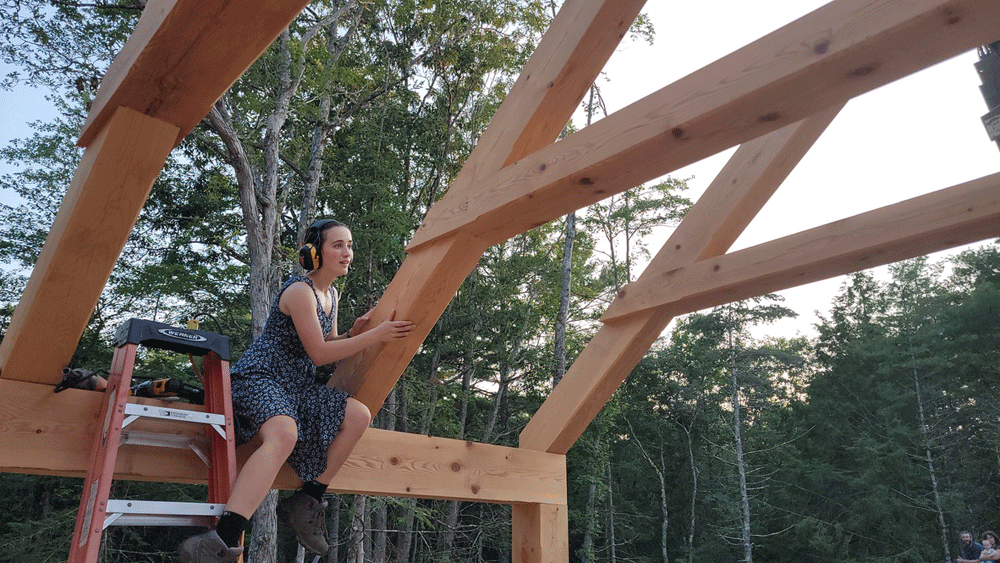

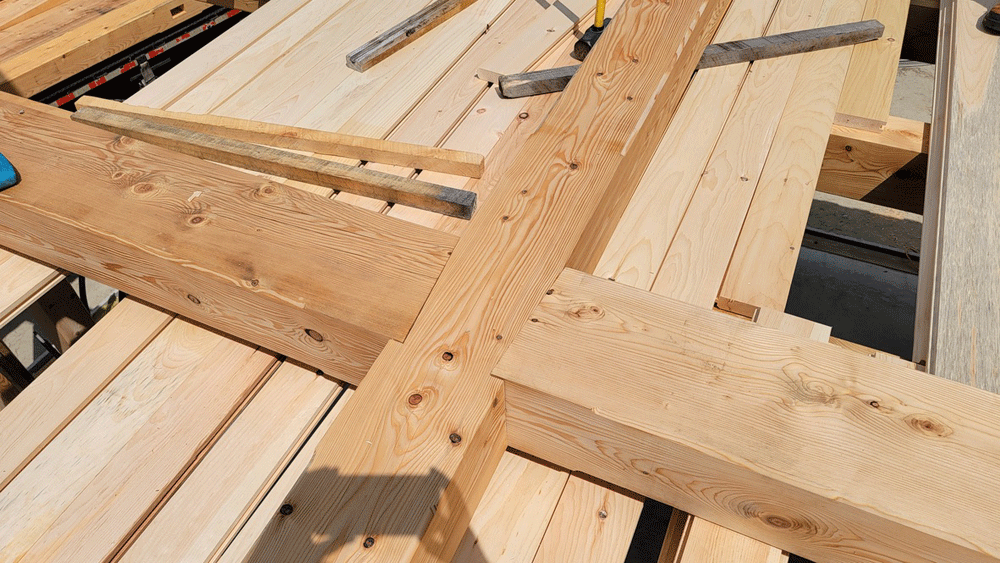

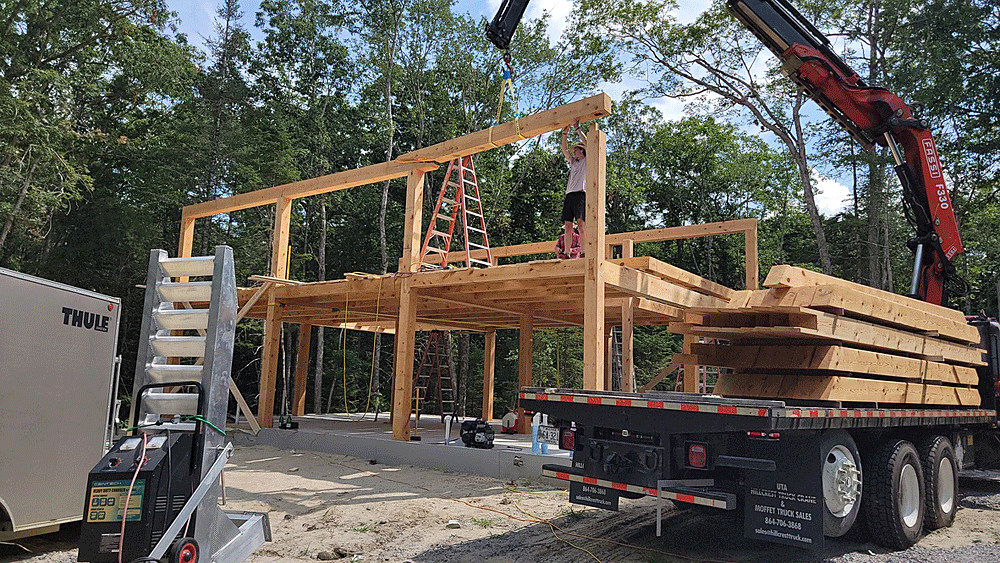

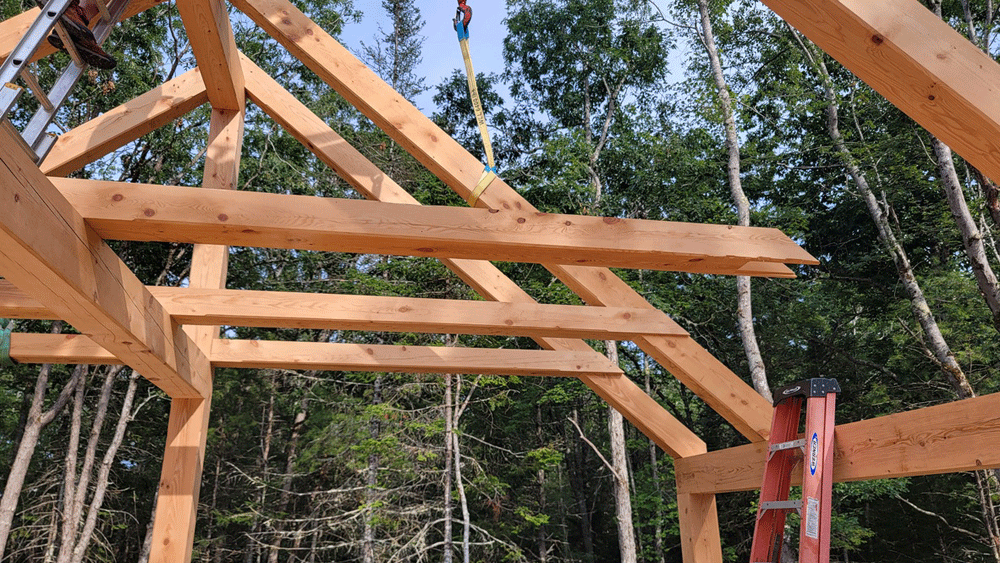

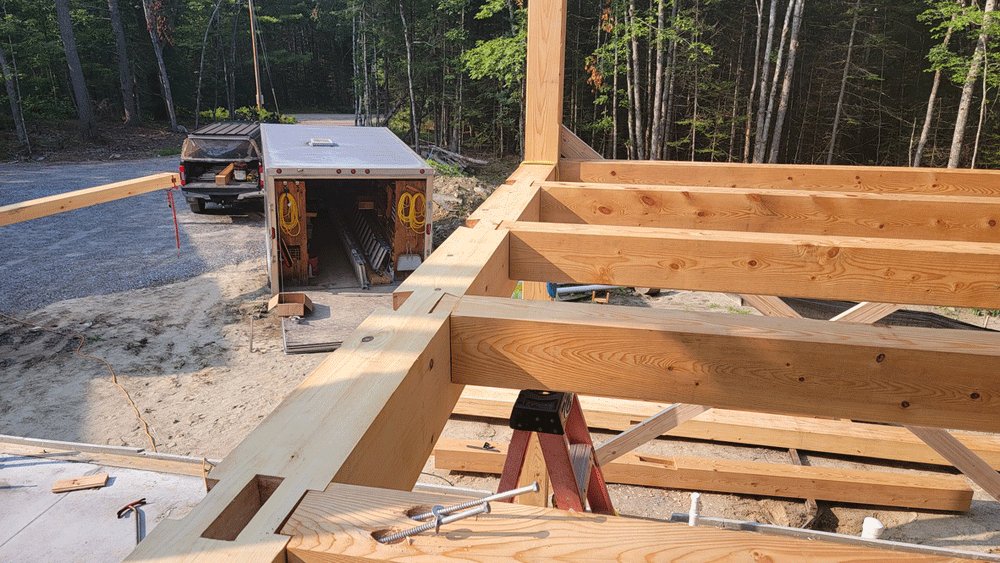

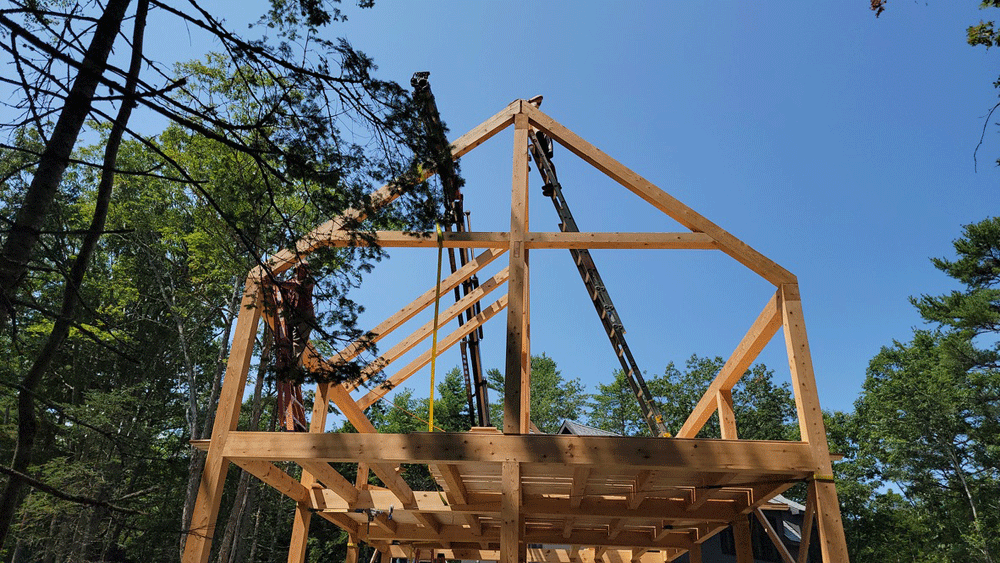

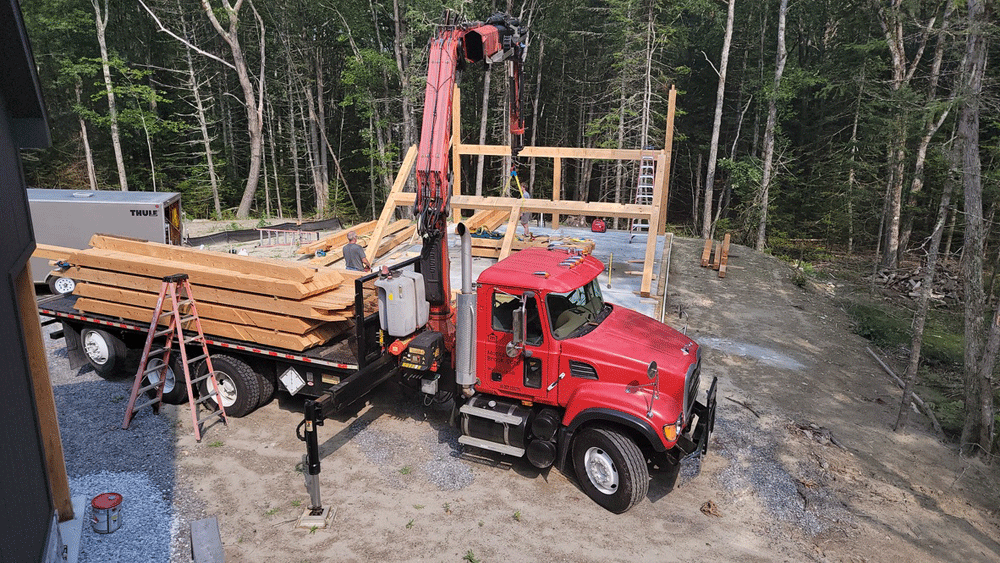

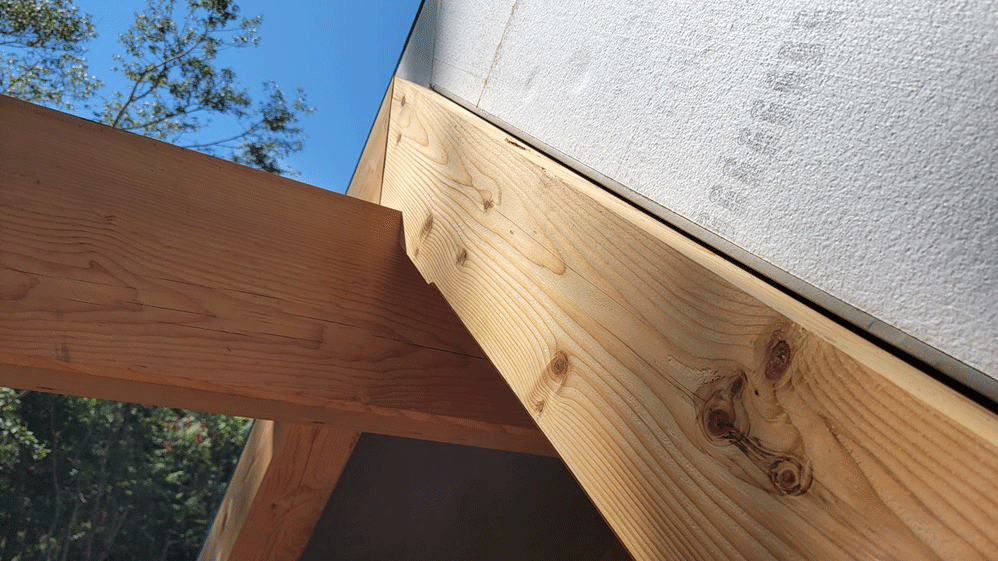

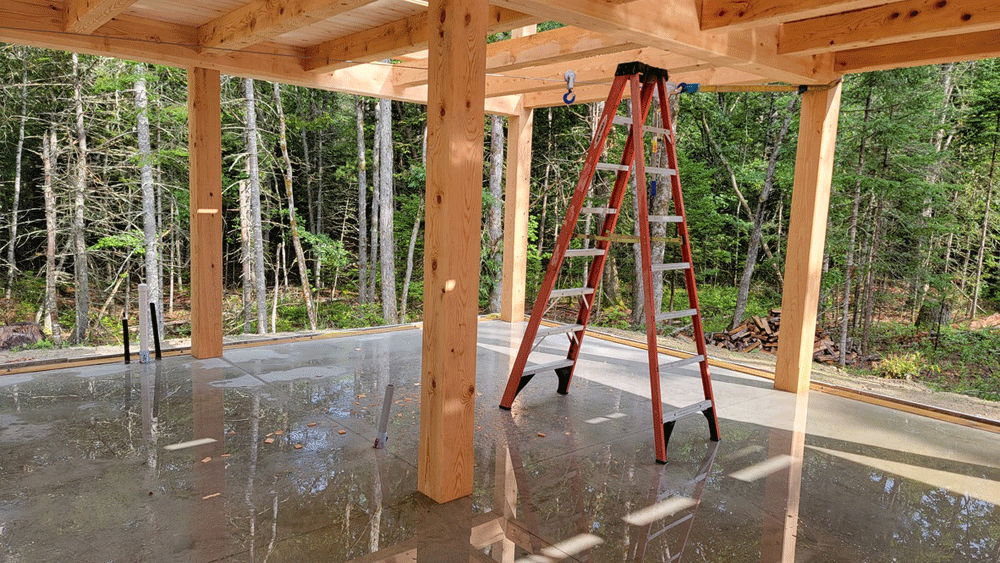

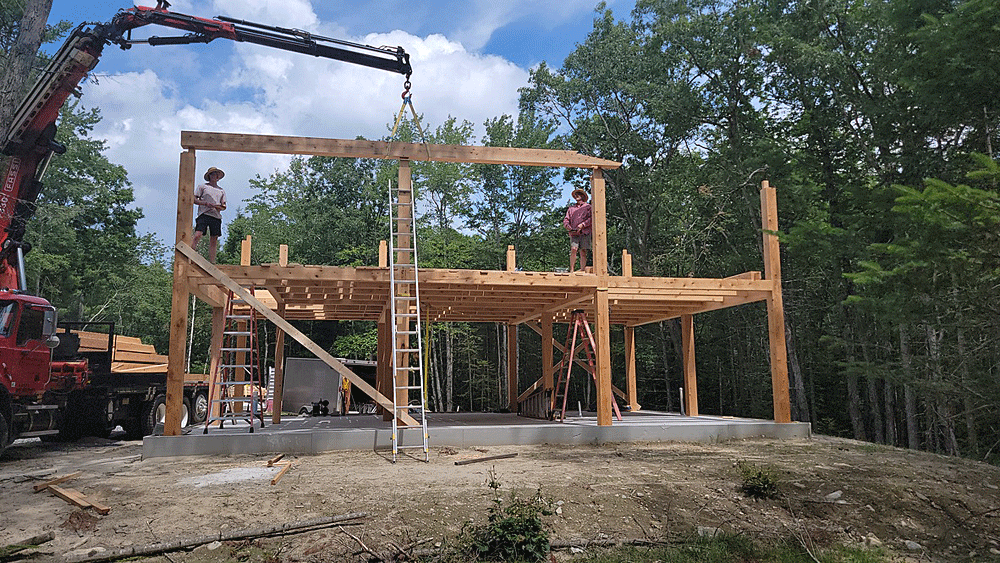

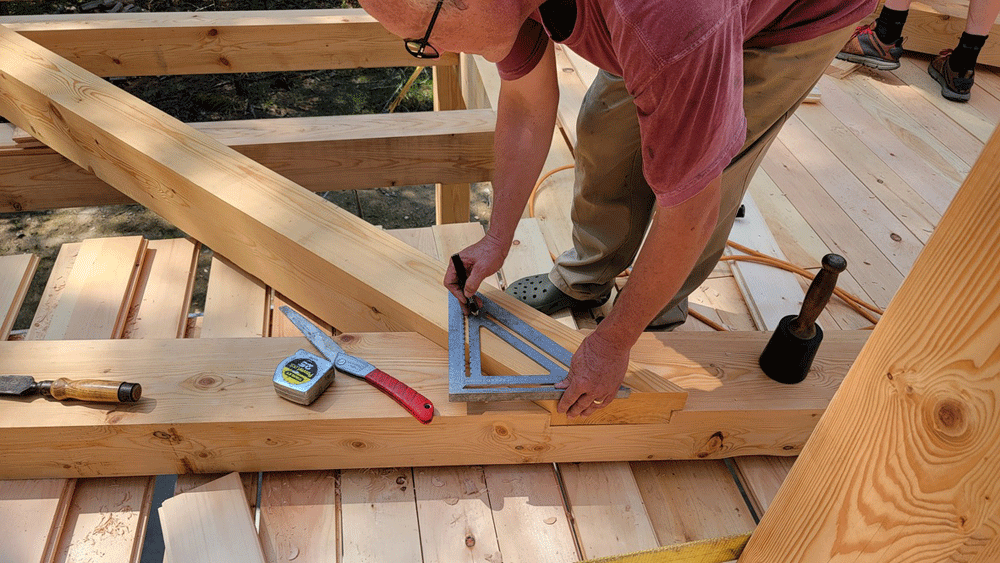

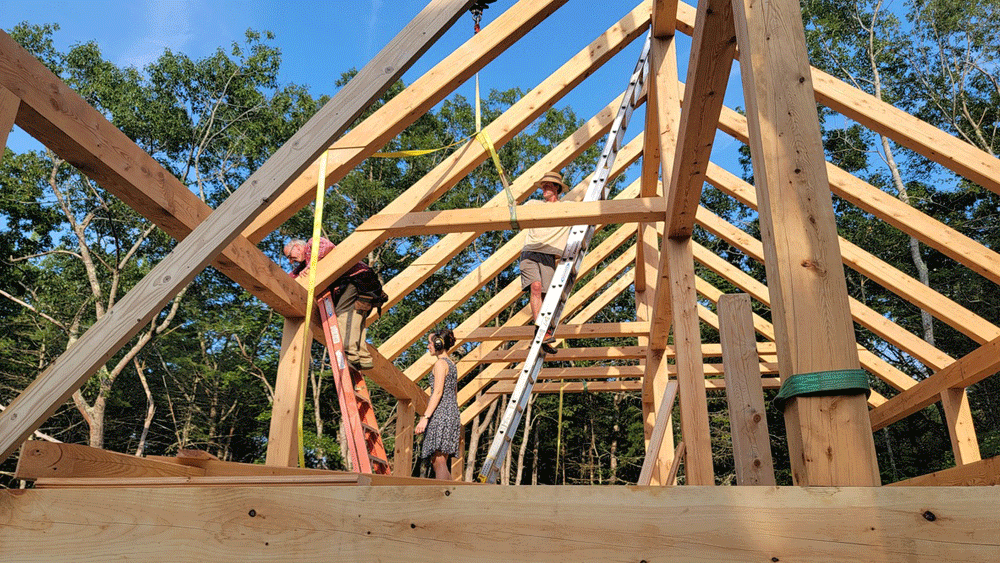

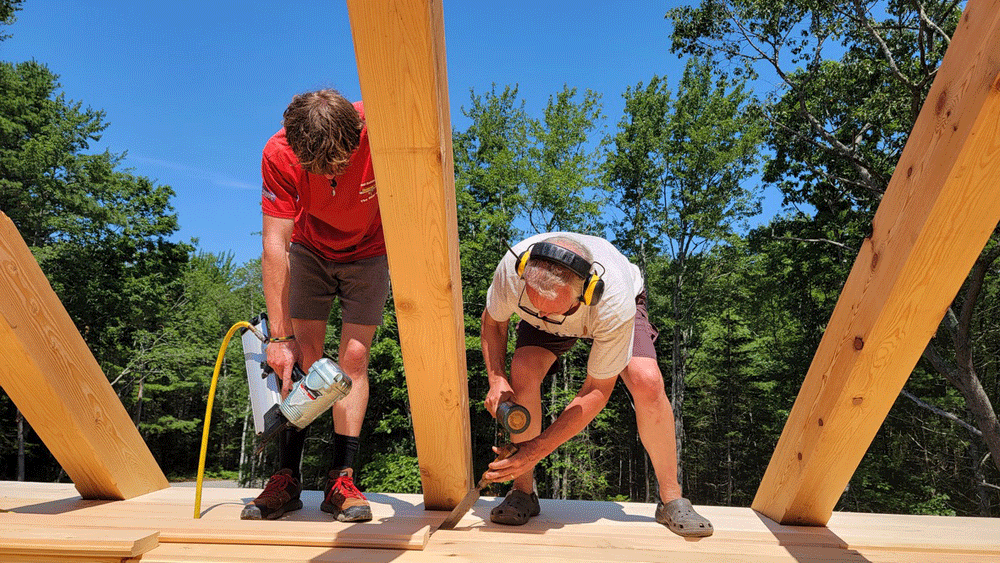

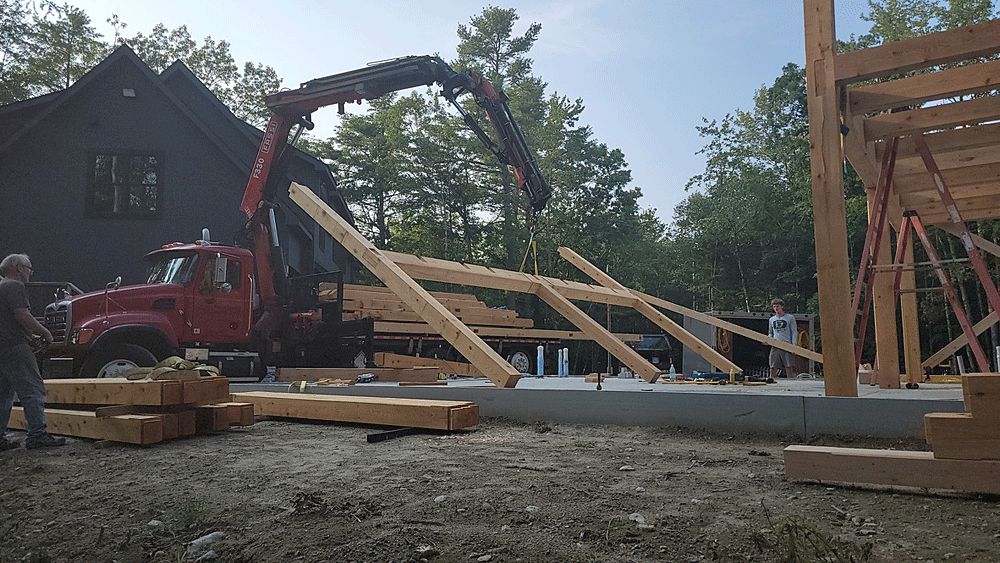

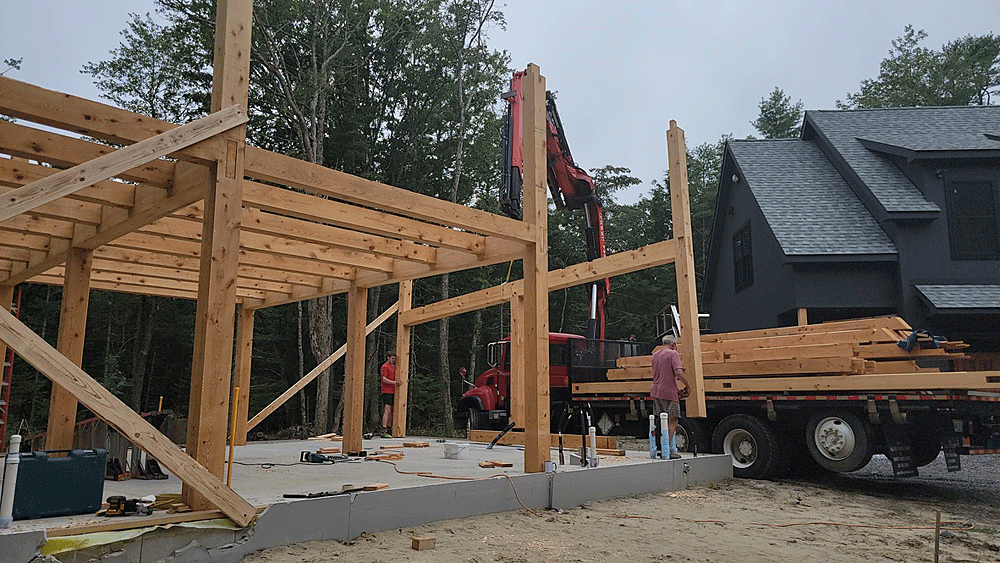

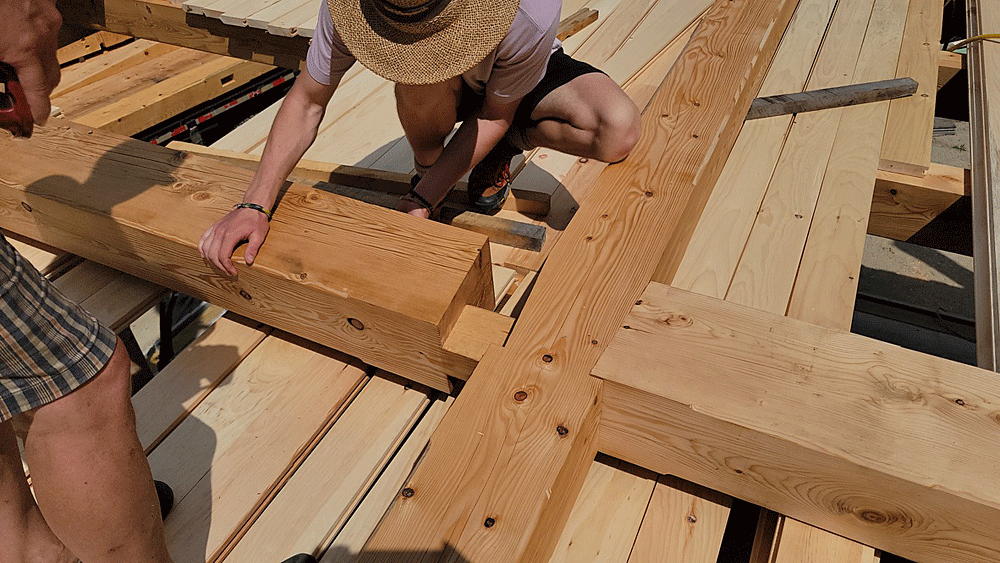

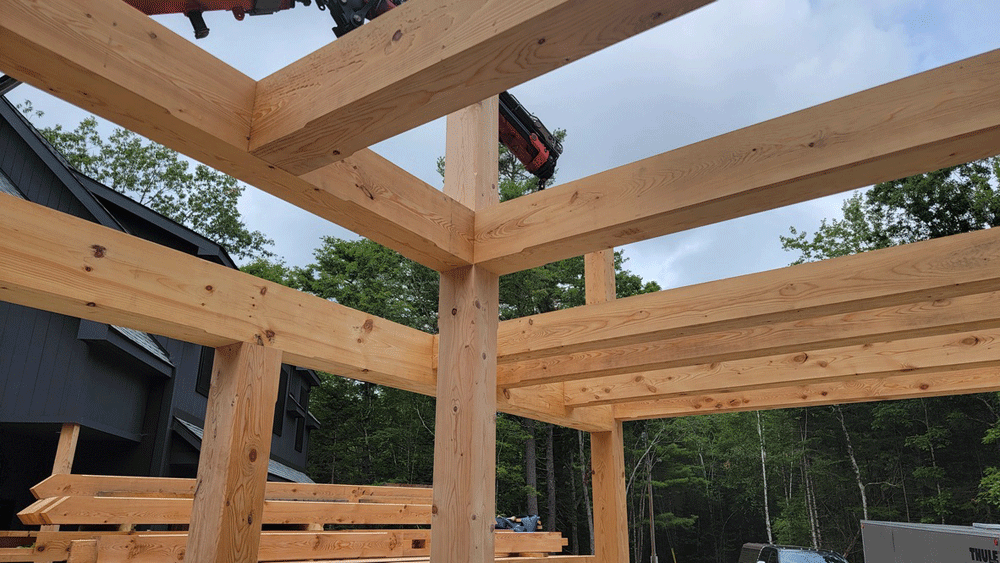

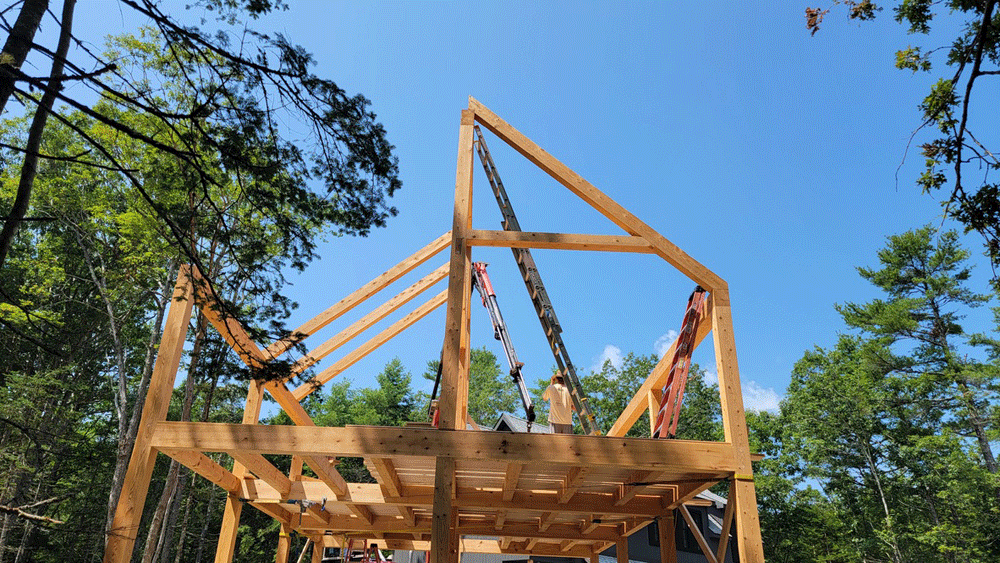

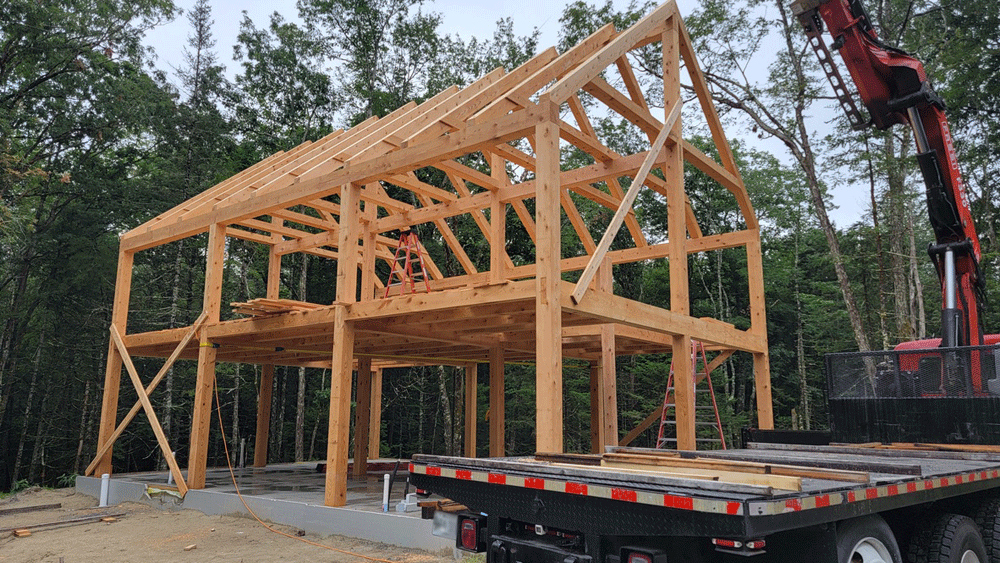

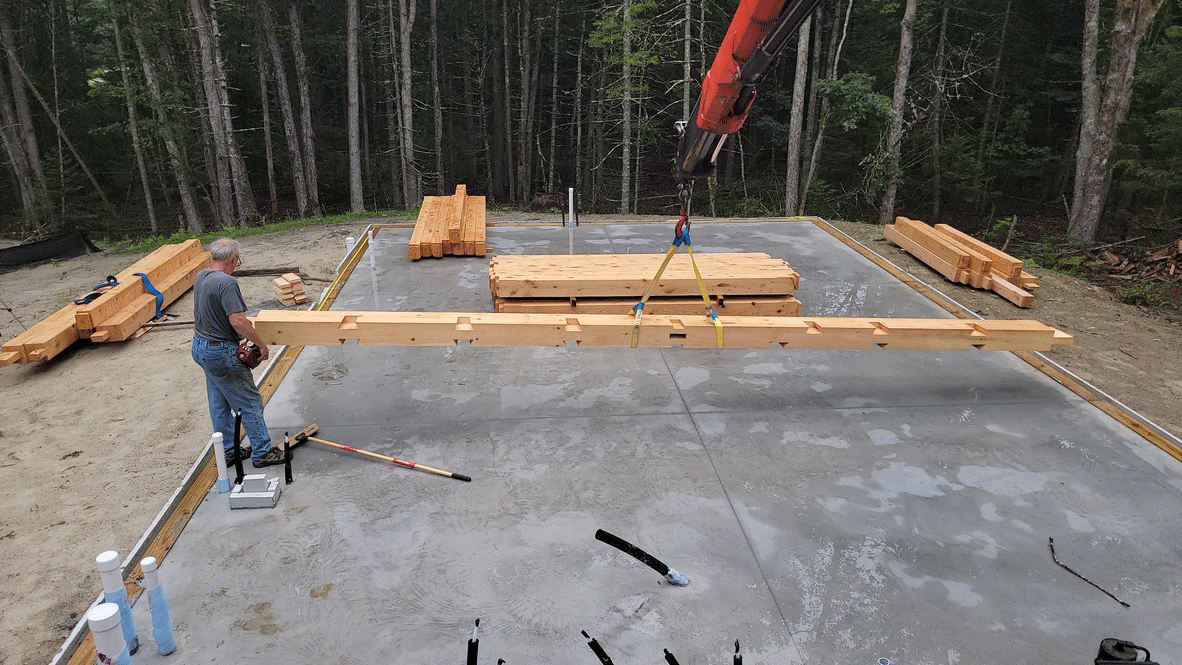

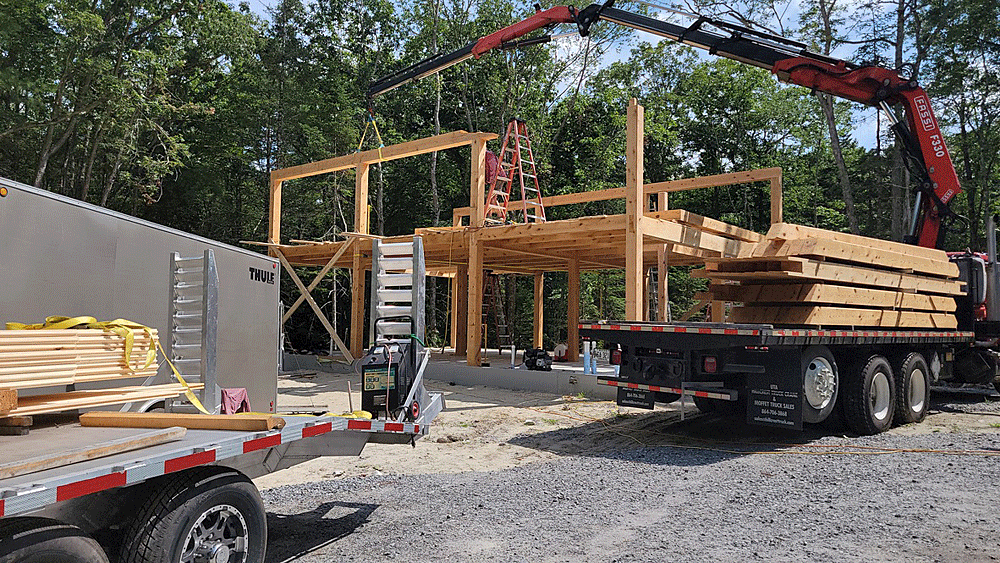

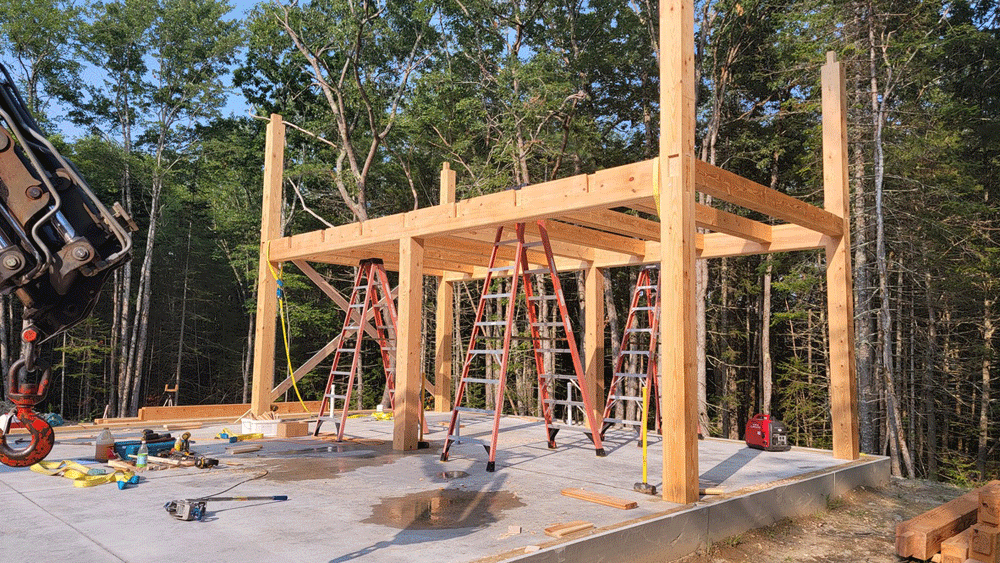

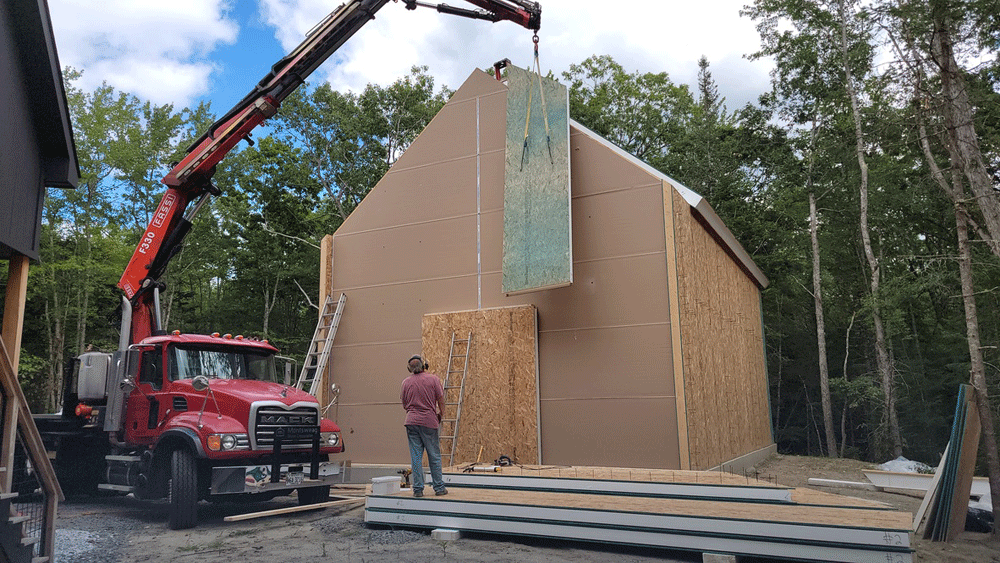

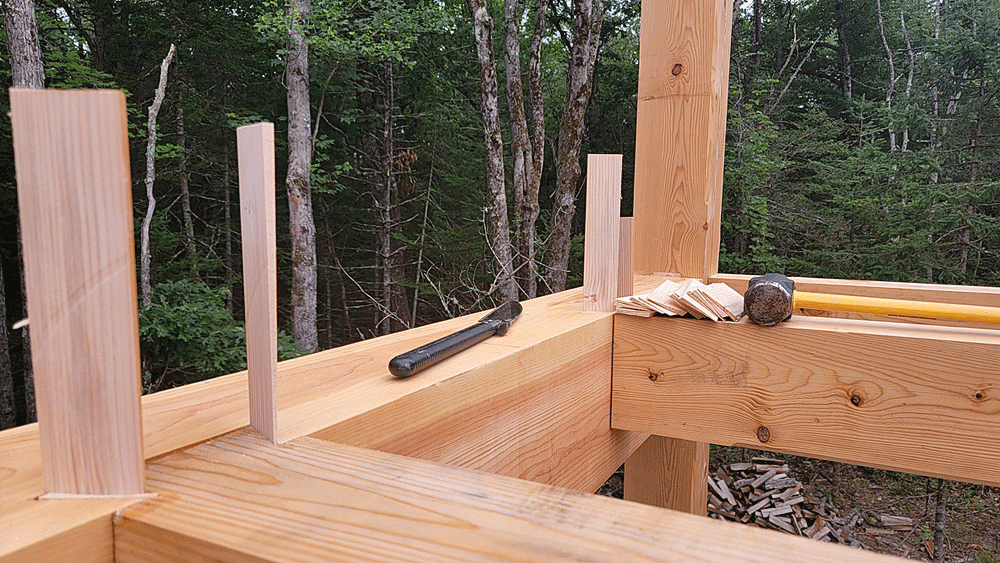

Unloading Bent Assembly First Bent Second Bent Joists First Bay Third Bent Joists from Below Post Fourth Bent Stair Opening Joinery Wedges Four Bents Ridge Pole Bent Tight Joinery Ridge Pole Bent First Plate Second Plate Scarf Joint Plate Raised After Rain Storm Drilling Raising Bent Speed Square Pegged Rafter Installed Both Sides Cross-Tie Installing Rafters More Cross Ties Nice Fit Joinery Timberframe Another Perspective Floor Boards Wall Panels Roof Panels Roof Panel Hanging Sheetrock Raising Panels Final Wall Installing Roof Roof Installed
